Container Size

Home> Cargo Information >Container Size

Container Specification

Information related to container specification is very important for clients. The dimension of different containers tends to vary slightly. It is best to refer to the right container with precise speculations before ordering a shipment.

Dry cargo container

Refrigerated Container

Fuel Tank Container

Flat Rack Containe

There are different size specifications for each of these containers that should be considered before placing a shipment order.

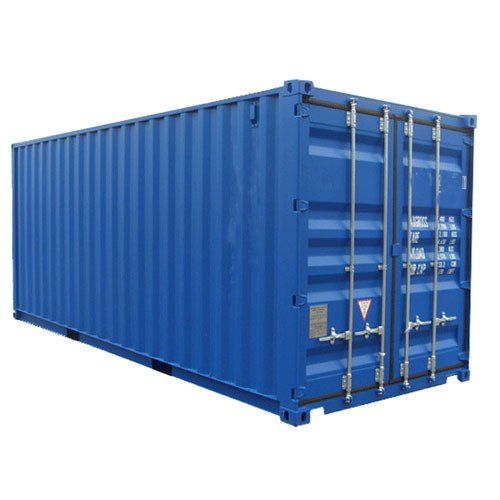

Dry Cargo Container

Exterior   Weight Door Opening
Length Width Height   MGW TARE NET Width Height
20'-0" 8'-0" 8'-6" 52,910 lb 5,140 lb 47,770 lb 7'-8 1/8" 7'-5 3/4"
6.058 m 2.438 m 2.591 m 67,200 lb 5,290 lb 61,910 lb 2.343 m 2.280 m
Interior 24,000 kg 2,330 kg 21,670 kg CU.M CU.FT
19'-4 13/16" 7'-8 19/32" 7'-9 57/64" 30,480 kg 2,400 kg 28,080 kg 33.1 1,169
5.898 m 2.352 m 2.385 m Purpose: Captioned units(MGW 30,480 KG) can be coordinated from EMCU 3204073 and EISU 3568118. Used for all kinds of general cargo.
Exterior   Weight Door Opening
Length Width Height   MGW TARE NET Width Height
40'-0" 8'-0" 8'-6" 67,200 lb 8,820 lb 58,380 lb 7'-8 1/8" 7'-5 3/4"
12.192 m 2.438 m 2.591 m 2.343 m 2.280 m
Interior 30,480 kg 4,000 kg 26,480 kg CU.M CU.FT
39'-5 45/64" 7'-8 19/32" 7'-9 57/64" 67.5 2,385
12.032 m 2.352 m 2.385 m Purpose: Used for all kinds of general cargo.
Exterior   Weight Door Opening
Length Width Height   MGW TARE NET Width Height
40'-0" 8'-0" 9'-6" 67,200 lb 9,260 lb 57,940 lb 7'-8 1/8" 8'-5 49/64"
12.192 m 2.438 m 2.896 m 2.343 m 2.585 m
Interior 30,480 kg 4,200 kg 26,280 kg CU.M CU.FT
39'-5 45/64" 7'-8 19/32" 8'-9 15/16" 76.2 2,690
12.032 m 2.352 m 2.69 m Purpose: Used for all kinds of general cargo.
Exterior   Weight Door Opening
Length Width Height   MGW TARE NET Width Height
45'-0" 8'-0" 9'-6" 67,200 lb 10,580 lb 56,620 lb 7'-8 1/8" 8'-5 3/4"
13.716 m 2.438 m 2.896 m 2.340 m 2.585 m
Interior 30,480 kg 4,000 kg 26,480 kg CU.M CU.FT
44'-5 7/10'' 7'-8 19/32'' 8'-10 17/64'' 86.1 3,040
12.032 m 2.352 m 2.385 m Purpose: Used for all kinds of general cargo.
Exterior   Weight Door Opening
Length Width Height   MGW TARE NET Width Height
45'-0" 8'-0" 9'-6" 67,200 lb 10,858 lb 56,342 lb 7'-8 1/8" 8'-5 3/4"
13.716 m 2.438 m 2.896 m 2.340 m 2.585 m
Interior 30,480 kg 4,870 kg 25,610 kg CU.M CU.FT
44'-5 7/10'' 7'-8 19/32'' 8'-10 17/64'' 86 3,040
13.556 m 2.352 m 2.698 m Purpose: Captioned units can be coordinated from EISU 804001~EISU 804500 and EMCU 801001~EMCU 80250.
Exterior   Weight Door Opening
Length Width Height   MGW TARE NET Width Height
45'-0" 8'-0" 9'-6" 71,650 lb 10,360 lb 61,290 lb 7'-8" 8'-6"
13.716 m 2.438 m 2.896 m 2.340 m 2.585 m
Interior 32,500 kg 4,700 kg 27,800 kg CU.M CU.FT
44'-5 7/10'' 7'-8 19/32'' 8'-10 17/64'' 86 3,040
13.556 m 2.352 m 2.698 m Purpose: Captioned units can be coordinated from EISU 802001~EISU 804000.

Refrigerated Container

Exterior   Nominal Weight
Length Width Height   Cubic Capacity MGW TARE
20'-0" 8'-0" 8'-6" 1006 cu.ft. 67,180 lb 6,700 lb
6.058 m 2.438 m 2.591 m 30,480 kg 3,040 kg
Interior 28.5 cu.m. CU.M CU.FT
18'- 17/32" 7'-6 15/32" 7'-5 39/54" 28.8 1,016
5.5 m 2.298 m 2.276 m Cooling capacity Air exchange rate Type Temp. control precision
  w(kcal)/C(F) CFM cu.m/hr
11,000(9,460)/1.7(35)
6,280(5,400)/-18(0)		 0-106 0-180 MHI
CPE14-2BAIIIEU		 +-0.25C
10,550(9,073)/2(35)
6,150(5,289)/-18(0)		 0-142 0-240 CARRIER
69NT40-551-501		 +-0.25C
Purpose: Used for all kinds of general cargo.
Exterior   Nominal Weight
Length Width Height   Cubic Capacity MGW TARE
20'-0" 8'-0" 8'-6" 978.46 cu.ft. 52,800 lb 6,314 lb
6.058 m 2.438 m 2.591 m 24,000 kg 2,870 kg
Interior 27.72 cu.m. CU.M CU.FT
17'-9 15/16" 7'-6" 7'-3.63/64" 27.72 978.46
5.543 m 2.286 m 2.235 m Cooling capacity Air exchange rate Type Temp. control precision
  w(kcal)/C(F) CFM cu.m/hr
11,000(9,460)/1.7(35)
6,280(5,400)/-18(0)		 0-106 0-180 MHI
CPE14-2BAIIIEU		 +-0.25C
Exterior   Nominal Weight
Length Width Height   Cubic Capacity MGW TARE
40'-0" 8'-0" 9'-6" 2,390 cu.ft. 74,960 lb 9,150 lb
12.192 m 2.438 m 2.896 m 34,000 kg 4,150 kg
Interior 67.70 cu.m. CU.M CU.FT
37'-11 55/64" 7'-6 15/32" 8'-4 5/32" 67.7 2,390
11.579 m 2.298 m 2.544 m Cooling capacity Air exchange rate Type Temp. control precision
  w(kcal)/C(F) CFM cu.m/hr
11,000(9,460)/1.7(35)
6,280(5,400)/-18(0)		 0-106 0-180 MHI
CPE16-2BAIIIEV		 +-0.25C
10,550(9,073)/2(35)
6,150(5,289)/-18(0)		 0-142 0-240 CARRIER
69NT40-551-501		 +-0.25C
Exterior   Nominal Weight
Length Width Height   Cubic Capacity MGW TARE
40'-0" 8'-0" 9'-6" 2351 cu.ft. 67,200 lb 9,480 lb
12.192 m 2.438 m 2.896 m 30,480 kg 4,300 kg
Interior 66.58 cu.m. CU.M CU.FT
38'-1 13/32" 7'-6" 8'-2 23/32" 66.6 2,351
11.618 m 2.286 m 2.507 m Cooling capacity Air exchange rate Type Temp. control precision
  w(kcal)/C(F) CFM cu.m/hr
11,000(9,460)/1.7(35)
6,280(5,400)/-18(0)		 0-106 0-180 MHI
CPE14-2BAIIIA/ES		 +-0.25C

Special Container

Exterior   Weight Door Opening
Length Width Height   MGW TARE NET Width Height
19'-10 1/2" 8'-0" 8'-6" 52,910 lb 5,310 lb 47,600 lb 7'-8 1/4" 7'-4 31/32"
6.058 m 2.438 m 2.591 m 24,000 kg 2,410 kg 21,590 kg 2.343 m 2.260 m
Interior CU.M CU.FT
19'-4 13/64" 7'-8 19/32" 7'-7 11/16" 32.5 1,148
5.898 m 2.352 m 2.329 m Purpose: Captioned units can be coordinated from UGMU 490001~UGMU 490150 and EMCU 460161~EMCU 460520.
Exterior   Weight Door Opening
Length Width Height   MGW TARE NET Width Height
20'-0" 8'-0" 8'-6" 67,200 lb 5,140 lb 62,060 lb 7'-8 3/10" 7'-6"
6.058 m 2.438 m 2.591 m 30,480 kg 2,330 kg 28,150 kg 2.340 m 2.280 m
Interior CU.M CU.FT
19'-4 4/5" 7'-8 4/5" 7'-8 3/5" 32.5 1,148
5.898 m 2.352 m 2.348 m Purpose: Captioned units can be coordinated from EISU 460001 to EISU 460400.
Exterior
Length Width Height
20'-0" 8'-0" 8'-6"
6.058 m 2.438 m 2.591 m
Interior
18'-6 7/16" 6'-7 59/64" 6'-9 39/64"
5.650 m 2.030 m 2.073 m
Weight
MGW TARE NET
66,140 lb 6,150 lb 59,990 lb
30,000 kg 2,790 kg 27,210 kg
Purpose: Captioned units can be coordinated from EMCU 760321~EMCU 760520.
Exterior
Length Width Height
20'-0" 8'-0" 8'-6"
6.058 m 2.438 m 2.591 m
Interior
18'-5 31/32" 7'-3 23/32" 7'-3 59/64"
5.638 m 2.228 m 2.233 m
Weight
MGW TARE NET
74,950 lb 6,370 lb 68,580 lb
34,000 kg 2,890 kg 31,110 kg
Purpose: Captioned units can be coordinated from EISU 750000 to EISU 750300.
Exterior
Length Width Height
20'-0" 8'-0" 8'-6"
6.058 m 2.438 m 2.591 m
Weight
MGW TARE NET
36,000 kg 3,385 kg 32,615 kg
Capacity
24,000 litres
Design Temp.
-20°C to 130°C
Purpose : Captioned units can be coordinated from EISU 8010010 to EISU 8010453, and are need for power pack generators equipped on group vessels, not for export or import purpose.
Exterior
Length Width Height
20'-0" 8'-0" 8'-6"
6.058 m 2.438 m 2.591 m
Interior
19'-4 13/16" 7'-8 19/32" 7'-9 57/64"
5.898 m 2.352 m 2.385 m
Weight
MGW TARE NET
8,500 kg 2,400 kg 6,100 kg
Power Supply
450 kw
Socket
40
Purpose : Captioned units can be coordinated from EMCU 0000013 to EMCU 0000409.
Exterior
Length Width Height
40'-0" 8'-0" 8'-6"
12.192 m 2.438 m 2.591 m
Interior
38'-7 15/16" 6'-7 59/64" 6'-4 1/2"
11.784 m 2.030 m 1.943 m
Weight
MGW TARE NET
99,210 lb 11,908 lb 87,302 lb
45,000 kg 5,400 kg 39,600 kg
Purpose: Captioned units can be coordinated from UGMU 707001~UGMU 707050; EMCU 700251~EMCU 700450.
Exterior
Length Width Height
40'-0" 8'-0" 8'-6"
12.192 m 2.438 m 2.591 m
Interior
38'-7 39/64" 7'-3 23/32" 6'-4 61/64"
11.752 m 2.374 m 1.955 m
Weight
MGW TARE NET
99,210 lb 10,800 lb 89,410 lb
45,000 kg 4,900 kg 40,100 kg
Purpose: Captioned units can be coordinated from EISU 710000~EISU 710500.
Exterior
Length Width Height
40'-0" 8'-0" 8'-6"
12.192 m 2.438 m 2.591 m
Interior
39'-7" 7'-8 9/10" 7'-8 3/5"
12.032 m 2.352 m 2.348 m
Weight
MGW TARE NET
67,200 lb 9,499 lb 57,701 lb
30,480 kg 4,300 kg 26,180 kg
CU.M
65.9
CU.FT
2,327
Purpose: Captioned units can be coordinated from EMCU 400362~EMCU 400601, UGMU 407001~UGMU 407050 and EISU 400001~EISU 400600.
Exterior
Length Width Height
40'-0" 8'-0" 9'-6"
12.19 m 2.44 m 2.90 m
Interior
39'-5 45/64" 7'-8 19/32" 8'-9 15/16"
12.03 m 2.35 m 2.69 m
Weight
MGW TARE NET
67,200 lb 9,172 lb 58,028 lb
30,480 kg 4,200 kg 26,280 kg
Door Opening
Width Height
7'-8 1/8" 8'-5 49/64"
2.343 m 2.585 m
Purpose: Used for all kinds of garment.
  • The Listed statues are for customers' easy reference only. Before picking up requested containers, please contact the assigned sales person in order to confirm required specification.
  • The specifications listed above are for indication purpose only. Please always refer to the container right door for actual specifications.
